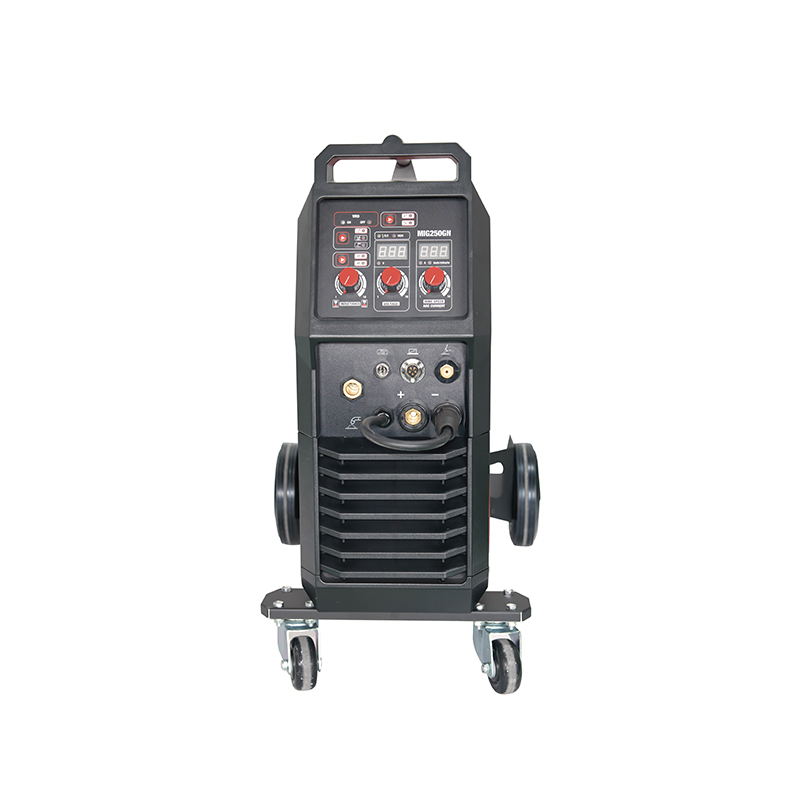

MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder

1、Built-in wire feeder,equipped with cylinder tray.
2、MIG/MMA/TIG Mode,LIFT TIG or HF TIG can be customized.
3、MMA mode with VRD control.
4、2T/4T Mode.
5、With output polarity conversion.
6、Under MMA mode can be used as lift arc TIG.
7、With perfect overcurrent,overheating,under voltage protection.
8、Current and voltage figure with seperate digital display.
9、3 Duct design(Waterproof, anti dust, anti corrosion).
10、The high rate of sustained load can be used for industrial users.

  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder
  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder
  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder
  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder
  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder
  • MIG200/250GN Inverter Igbt And Igbt Module Series For Mig/Mag Welder

SPECIFICATION

MODEL MIG200GN MIG250GN MIG250GN3
Power Supply Voltage(V) 1P-220±15% 1P-110/220±15% 3P-380±15%
Frequency(HZ) 50/60
220 110 220 380
MIG MMA TIG MIG MMA TIG MIG MMA TIG MIG MMA TIG
Rated Input Power(KW) 6.0 7.0 4.5 5.0 6.1 3.7 8.3 9.4 6.3 7.8 8.8 5.9
Rated Input Current(A) 32.4 43.6 28 45.8 55.8 34 51.6 58.4 38 13 15 10
Duty Cyle(40°C 10min) 60%200A
100%154A		 60%140A
100%108A		 60%250A
100%194A		 60%250A
100%194A
No Load Voltage(V) 56
Welding Current Range(A) 50~200 25~200 15~200 50~140 25~140 15~140 50~250 25~250 15~250 50~250 25~250 15~250
Welding Vltaget Range(V) 15~28 15~22 15~30 15~30
Eficiency(%) ≥80 ≥85
Power Factor 0.73 0.93
Protection Class IP21
Insulation Class F
Cooling AF
Wire Diameter(mm) 0.6/0.8/0.9/1.0 1.6~3.2 0.6/0.8/0.9 1.6~4 0.6/0.8/0.9/1.0/1.2 1.6~4 0.6/0.8/0.9/1.0/1.2 1.6~4
Net Weight(kg) 47 51 49
Gross Weight(kg) 53 57 55
Paking Meas(mm) 935X445X810
Customization
The appearance, welding current, product manuals and package of our MIG welding machine can be customized according to customer requirements.
