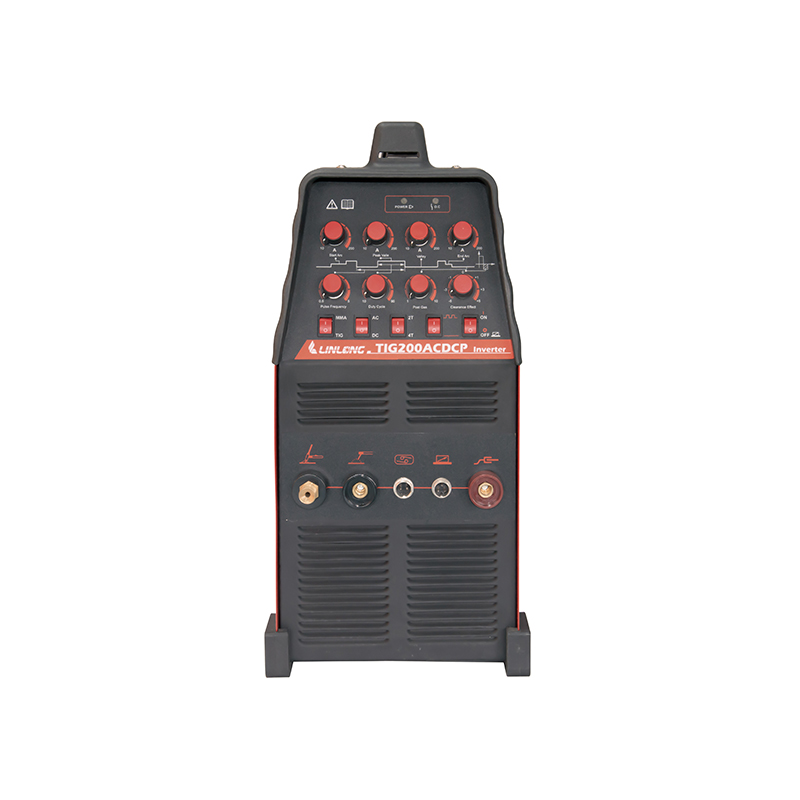

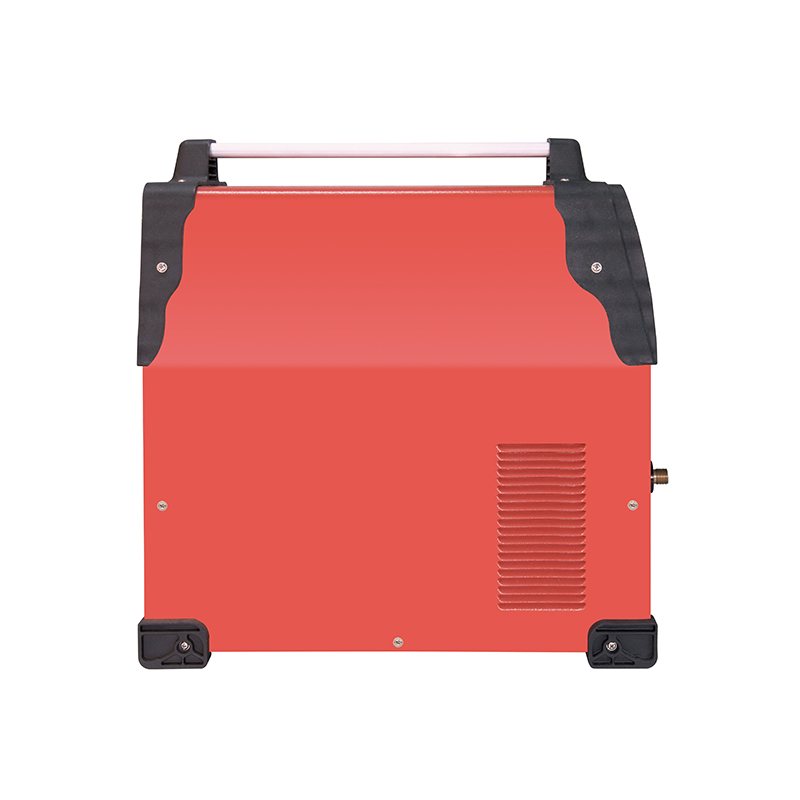

TIG160/200/250/315ACDCP Inverter Mosfet Series For Tig Acdcp Welder

1、2T/4T Mode.

2、Adopt advanced 100KHZ high frequency inverter technology.

3、With TIG/MMA two functions.

4、With pedal and panel control function, pedal control is optional.

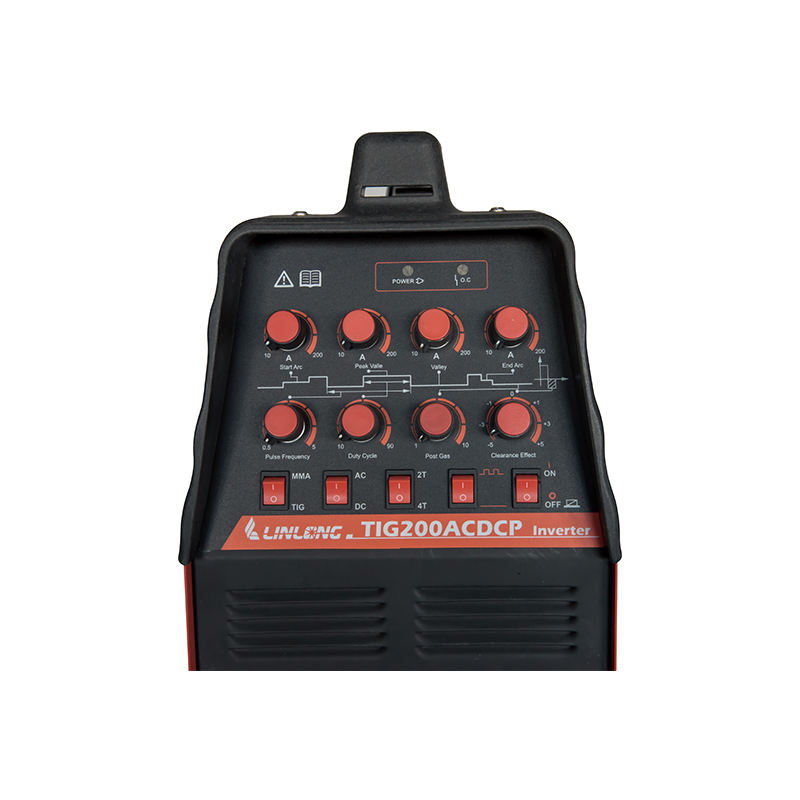

5、With arc start current,peak current,basic current adjustment, arc ending current,pulse frequency,pulse ratio,post-flow adjustment, clearance width adjustment.

6、Unique high frequency arc start,higher success rate of arc striking.

7、Automatic over-voltage,under-voltage,over-current protection,safe and reliable.

SPECIFICATION

MODEL	TIG160ACDCP				TIG200ACDCP				TIG250ACDCP₂		TIG250ACDCP₃		TIG315ACDCP
Power Supply Voltage(V)	1P~110/220±15%								1P~220±15%		3P~380±15%
Frequency(HZ)	50/60
	110		220		110		220		220		380
	MMA	TIG	MMA	TIG	MMA	TIG	MMA	TIG	MMA	TIG	MMA	TIG	MMA	TIG
Rated Input Power(KW)	4.5	2.7	4.9	3.0	4.5	2.7	6.6	4.1	8.4	6.3	7.9	5.9	9.8	8.4
Rated Input Current(A)	55.9	34.0	30.4	18.7	55.9	34.0	40.8	26.0	52.3	38.9	12.9	9.0	14.9	13.7
Duty Cycle(40°C 10min)	20%140A 100%108A		20%150A 100%116A		20%140A 100%108A		20%190A 100%147A		30%230A 100%178A	30%250A 100%194A	30%230A 100%178A	30%250A 100%194A	30%270A 100%209A	30%315A 100%244A
No Load Voltage(V)	56
Welding Current Rangel(A)	10~140		10~150		10~140		10~190		10~230	10~250	10~230	10~250	10~270	10~315
Efficiency(%)	≥80										≥85
Power Factor	0.73										0.93
Protection Class	IP21
Insulation Class	F

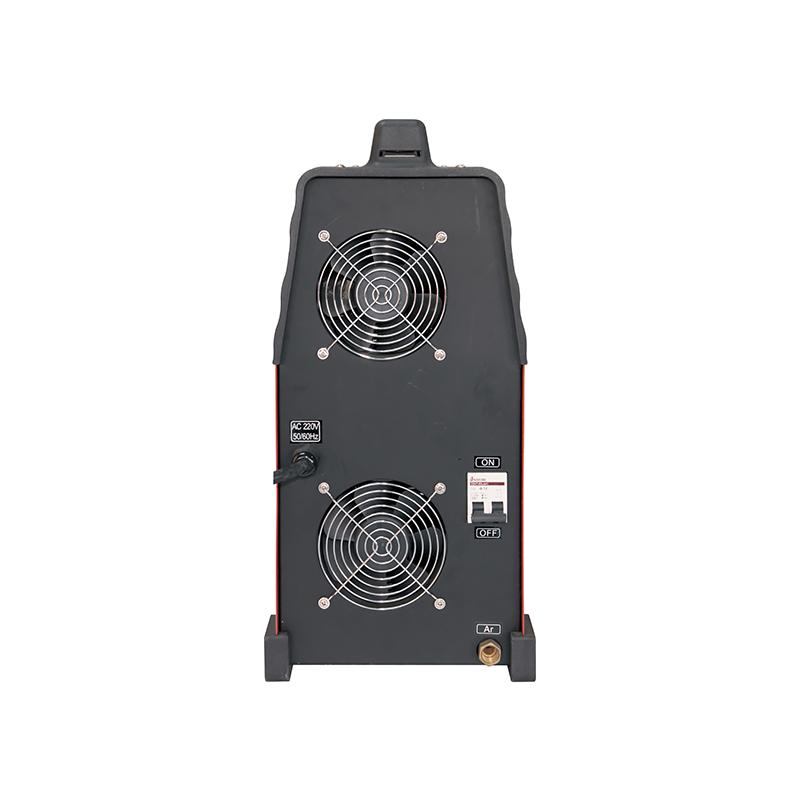

Cooling	AF
Net Weight(kg)	22.3				22.8				34.0		34.0		35.0
Gross Weight(kg)	24.3				24.8				37.0		37.0		37.5
Paking Meas(mm)	640X300X565								785X310X605
